Model 'MM2' V2.0

List of SDLPS model's files on the Model 'MM2'.

  • MM2.vsdx
    • BServer1.vsdx
      • PServer1.vsdx
    • BQueue.vsdx
      • PQueue.vsdx
    • BServer2.vsdx
      • PServer2.vsdx
  • Visio Files with DCLS
    • PServer1.vsdx
    • PQueue.vsdx
    • PServer2.vsdx
×

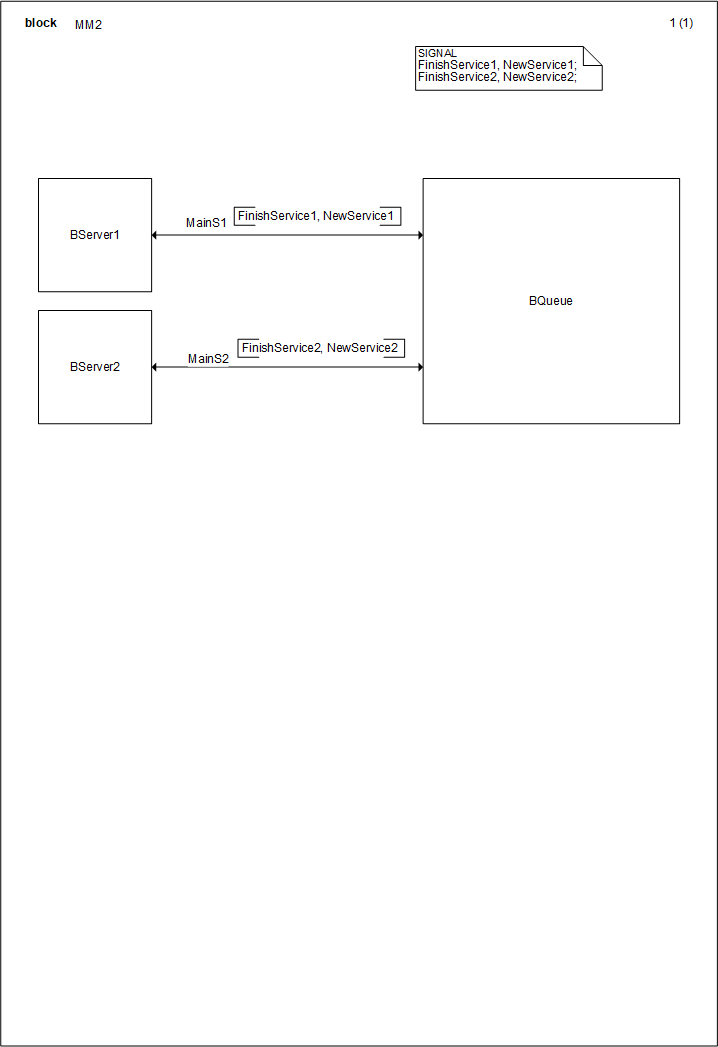

MM2.vsdx

Error

No DCLS in this document.

Add Child Close

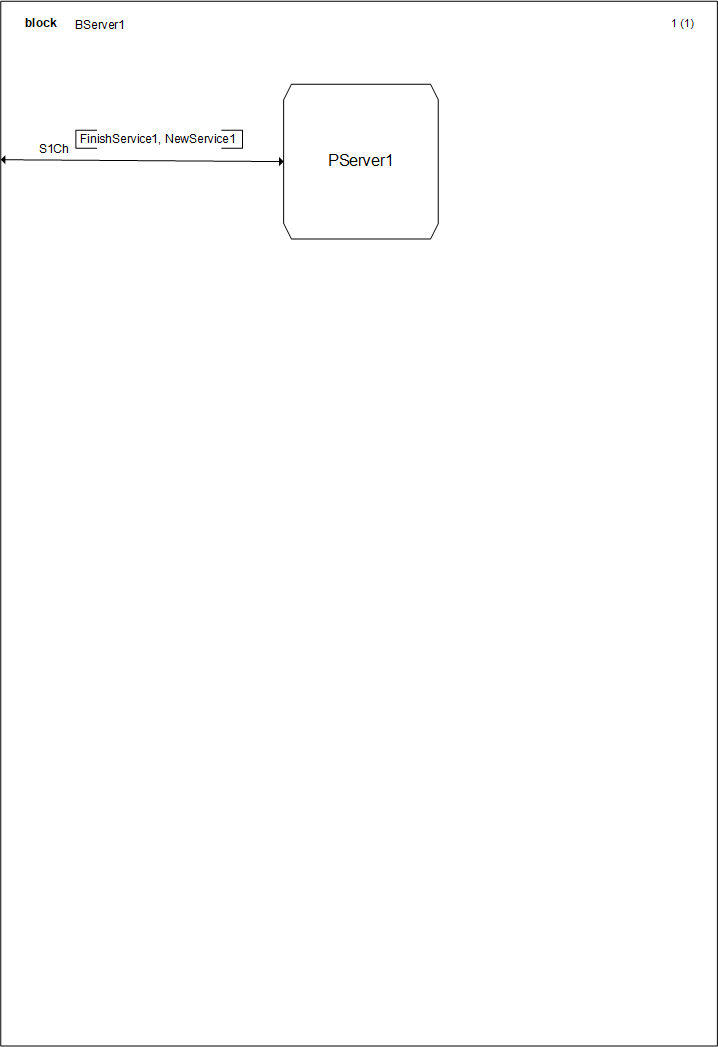

BServer1.vsdx

Error

No DCLS in this document.

Add Child Close

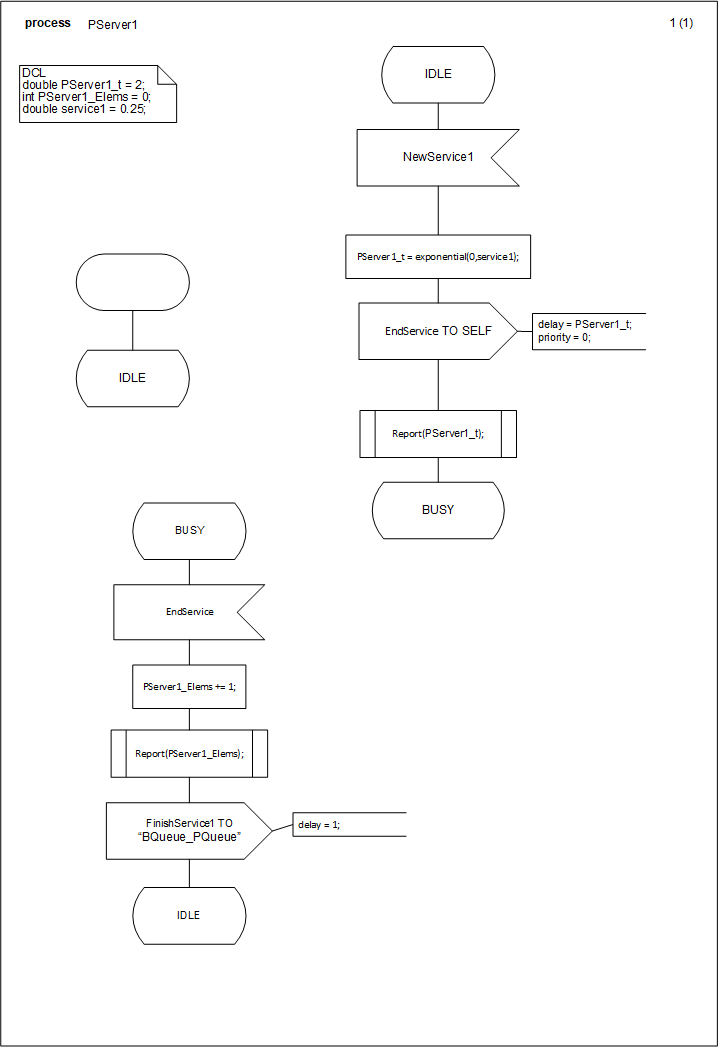

PServer1.vsdx
Values
Type Name Parent MM2-Test Edit
double PServer1_t 2 2
int PServer1_Elems 0 0
double service1 0.25 0.15
Add Child Close

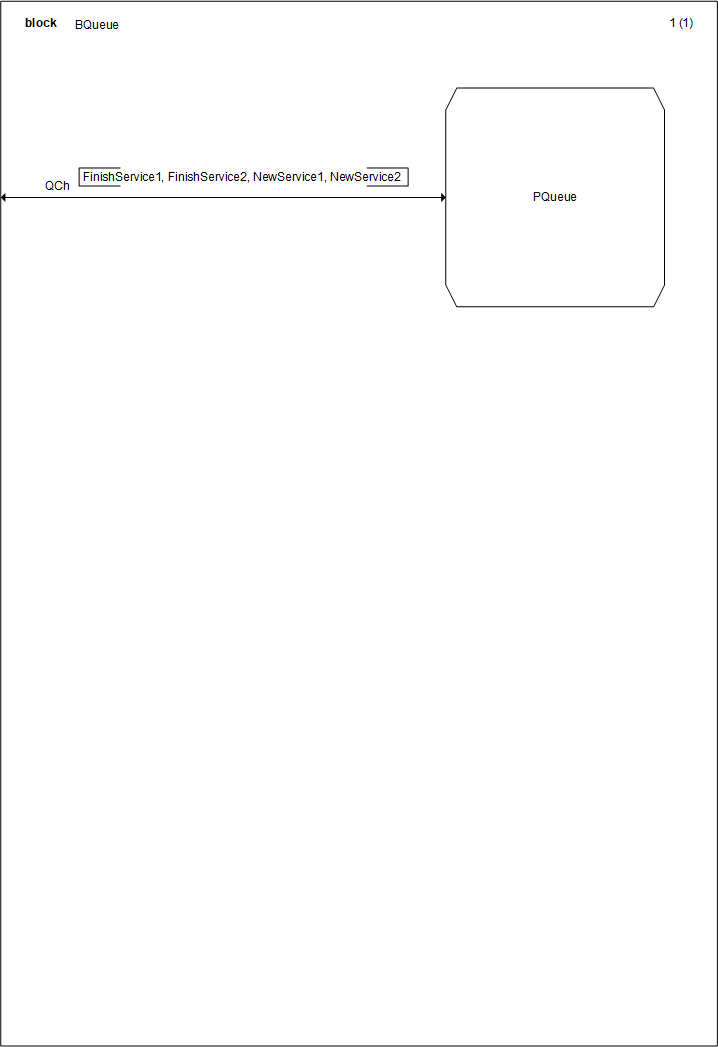

BQueue.vsdx

Error

No DCLS in this document.

Add Child Close

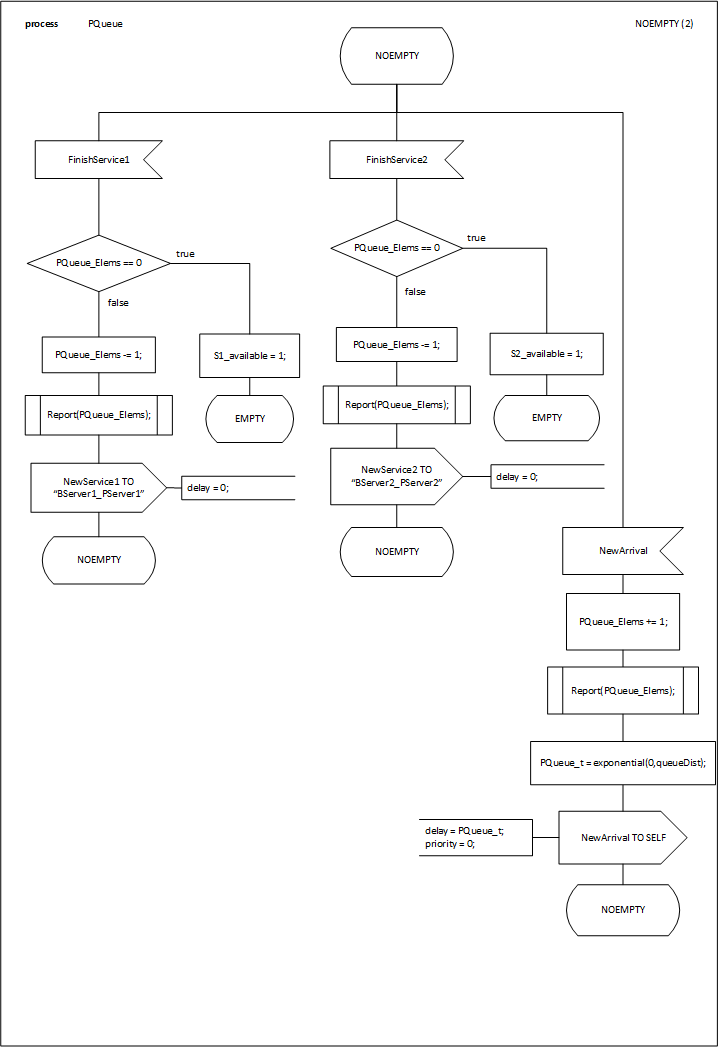

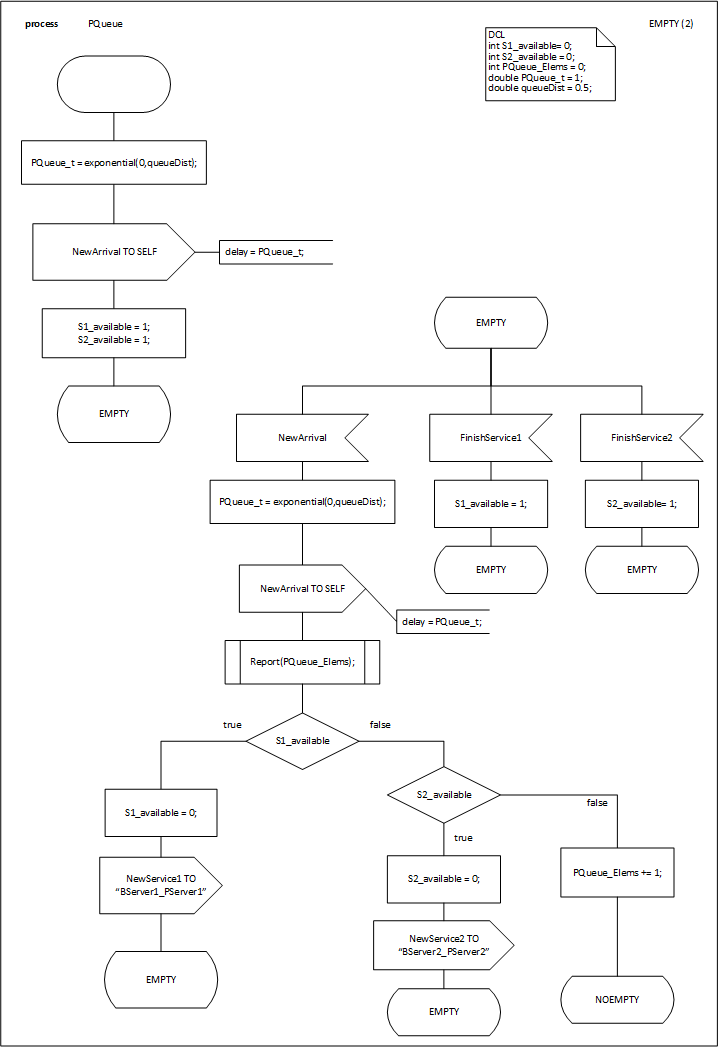

PQueue.vsdx
Values
Type Name Parent MM2-Test Edit
int S1_available 0 0
int S2_available 0 0
int PQueue_Elems 0 0
double PQueue_t 1 1
double queueDist 0.5 0.5
Add Child Close

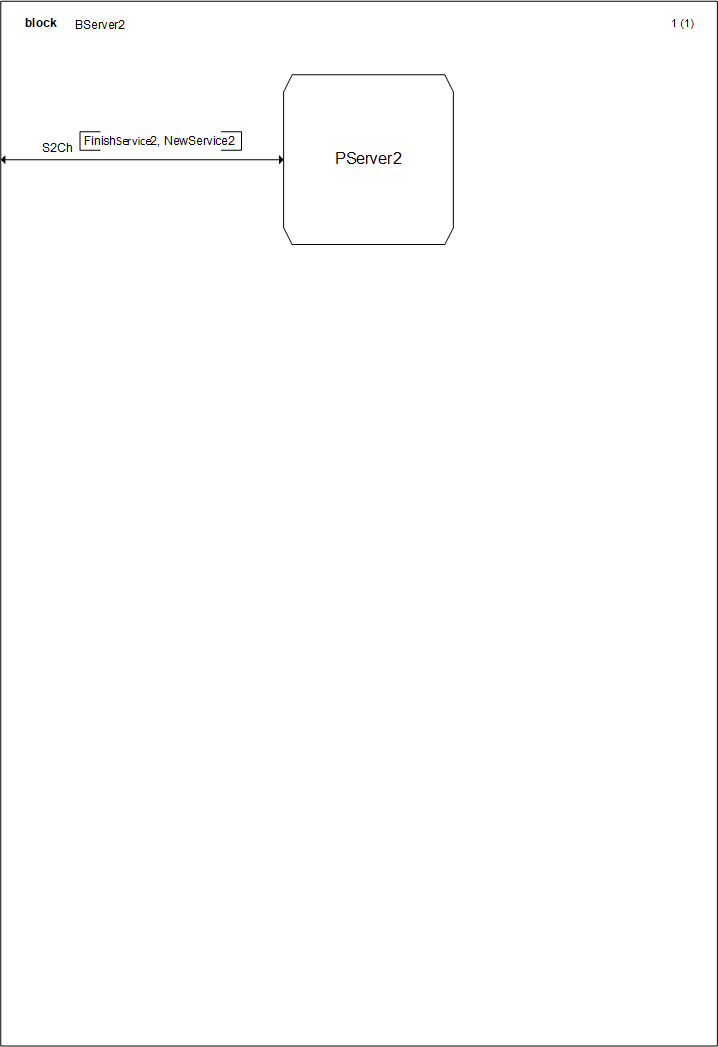

BServer2.vsdx

Error

No DCLS in this document.

Add Child Close

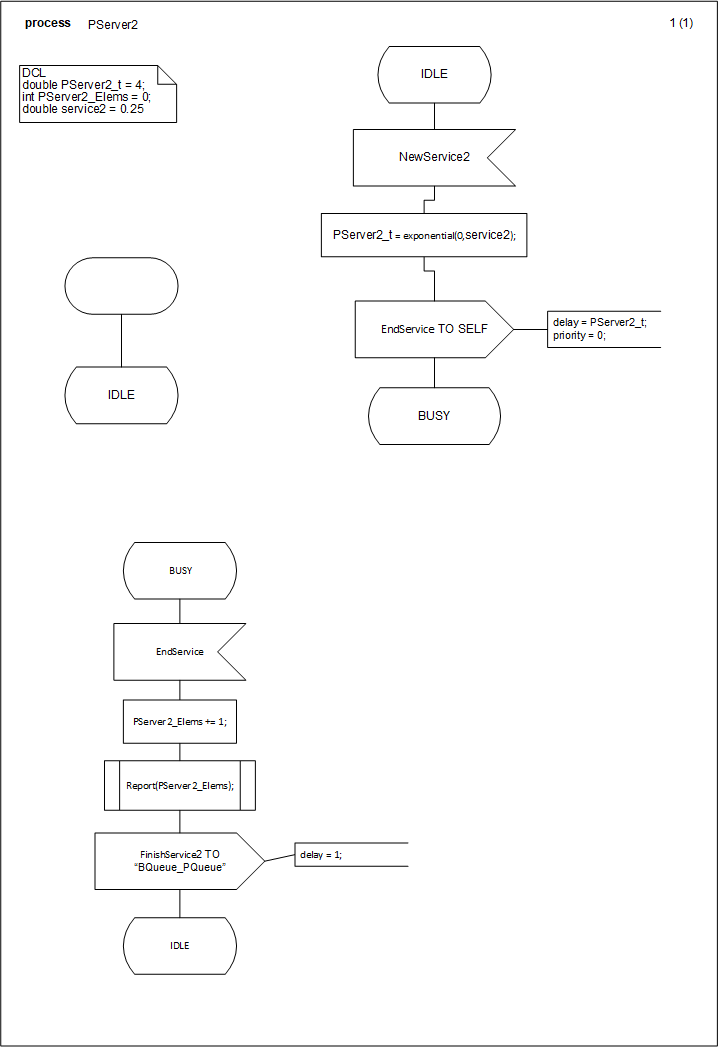

PServer2.vsdx
Values
Type Name Parent MM2-Test Edit
double PServer2_t 4 4
int PServer2_Elems 0 0
double service2 0.25 0.15
Add Child Close
